Star CNC Machine Tool
SL-10
by Star CNC Machine Tool

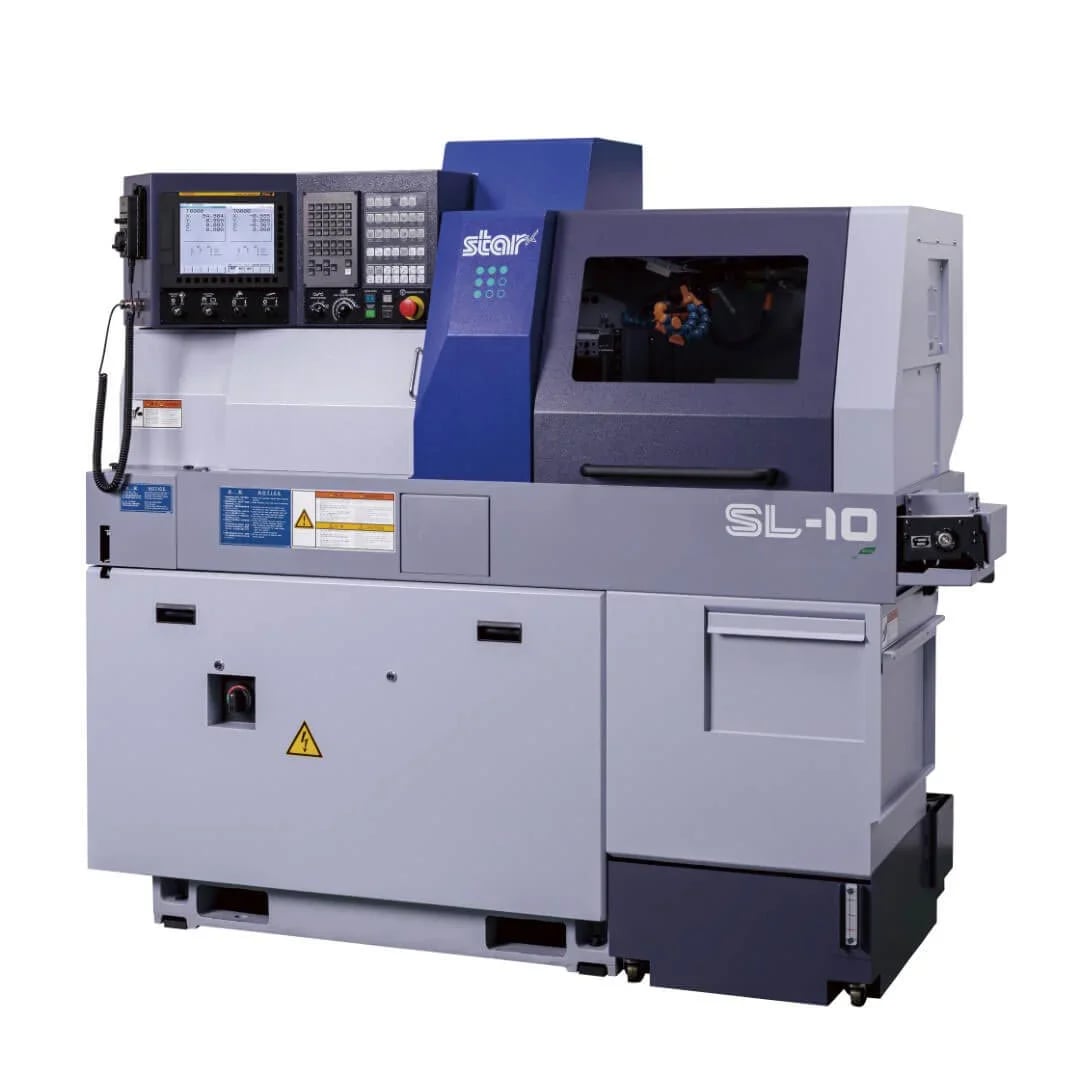

The SL-10 is a compact, high-precision Swiss-type CNC lathe, ideal for small part production with exceptional accuracy.
10 mm (25/64 in)
Max. Machining Diameter
135 mm (5-5/16 in)
Max. Headstock Stroke (Stationary G.B.)
max. 18,000 RPM
Main Spindle Speed (Stationary G.B.)
SL-10 Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Spindle speeds up to 15,000 RPM
- Sleeve holder
- Power driven attachment
- Rapid feed rate
- Main spindle indexing angle
- Main spindle speed
- Main spindle motor
Built-In Extras
- Compact design for efficient small-part machining
- Supports up to 18 tool stations for versatile operations
- Max. machining diameter
- Max. headstock stroke
- Tool
- Dimensions (WxDxH)
- Weight
- Coolant tank capacity
Star CNC SL-10 Technical Details
Complete specifications, standard features, and optional upgrades.
- Max. Machining Diameter
- 10 mm (25/64 in)
- Max. Headstock Stroke (Stationary G.B.)
- 135 mm (5-5/16 in)
- Main Spindle Speed (Stationary G.B.)
- max. 18,000 RPM
- Main Spindle Speed (R.G.B)
- max. 15,000 RPM
- Main Spindle Motor
- 3.7 kW (continuous) / 5.5 kW (10min./25%ED)
- Rapid Feed Rate
- 35 m/min (X1, X2, Y1, Z1, Z2)
| Max. Machining Diameter | 10 mm (25/64 in) |
| Max. Headstock Stroke (Stationary G.B.) | 135 mm (5-5/16 in) |
| Main Spindle Speed (Stationary G.B.) | max. 18,000 RPM |
| Main Spindle Speed (R.G.B) | max. 15,000 RPM |
| Main Spindle Motor | 3.7 kW (continuous) / 5.5 kW (10min./25%ED) |
| Rapid Feed Rate | 35 m/min (X1, X2, Y1, Z1, Z2) |
SL-10 Questions
Answers to common questions about the SL-10.
The SL-10 CNC Swiss-type Automatic Lathe is particularly well-suited for industries that demand high precision and intricate machining of small components. Key sectors include the medical industry for surgical tools and implants, the automotive sector for sensors and connectors, aerospace for various flight-critical components, electronics for connectors and switches, watchmaking for gears and movements, and the ICT industry for components in devices and communication equipment. Its precision also makes it invaluable in the broader field of precision engineering, where exacting standards are the norm for component production.
The main spindle can reach speeds up to 18,000 RPM for the stationary guide bush type and 15,000 RPM for the revolving guide bush type. The sub spindle has a maximum speed of 12,000 RPM.

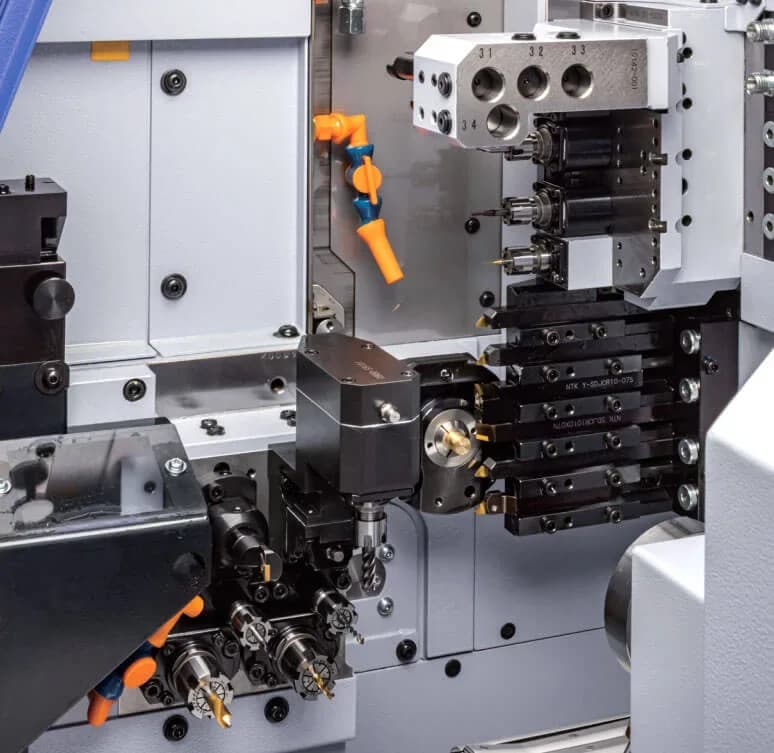

The SL-10 features a 6-tool holder for turning tools and a 4-spindle sleeve holder for drilling tools. Additionally, it includes a 5-spindle cross drilling unit and a 6-spindle back working unit for enhanced multi-processing capabilities. Contact our specialist for more technical details.
The SL-10 is equipped with the FANUC 32i-B CNC unit, known for its reliability and precision in controlling complex machining operations. Did you download CNC Swiss type automatic lathe brochure?
Standard accessories include an automatic centralized lubrication unit, coolant level detector, and a 10.4-inch color LCD display operation panel. Optional accessories range from various parts ejectors to a coolant unit with defoaming function and a parts conveyor.
