Star CNC Machine Tool
SR-10J Type C
by Star CNC Machine Tool

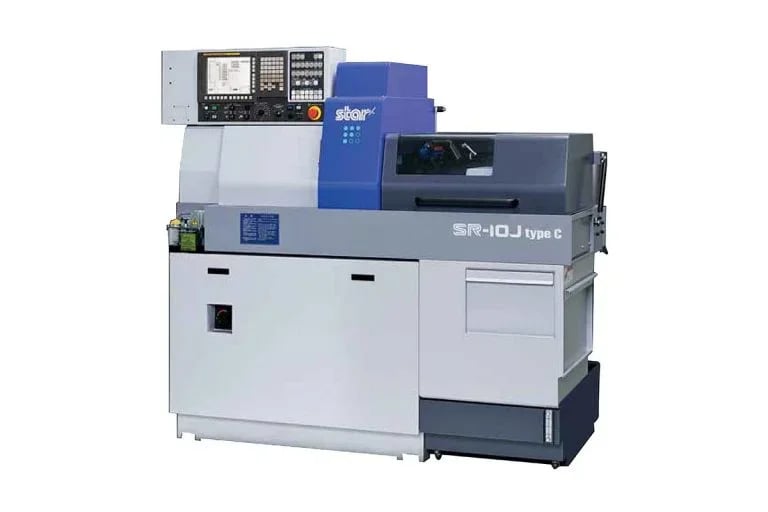

The SR-10J Type C CNC Swiss Lathe is engineered for precision and speed, making it ideal for small part production in high-accuracy industries.
ø10mm (25/64 in)
Max. Machining Diameter
135 mm (5-5/16 in)
Max. Headstock Stroke
max. 15,000 min⁻¹
Main Spindle Speed
SR-10J Type C Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Spindle speeds up to 15,000 RPM
- 4-Spindle Sleeve Holder
- Spindle Speed
- Drive Motor
- Rapid Feed Rate
- Main Spindle Indexing Angle
- Main Spindle Speed
Machining Capability
- Power-Driven Att.
- Max. Drilling Capacity
- Max. Tapping Capacity
Built-In Extras
- Compact and efficient for small-part machining
- Supports up to 21 tool stations for versatile production
- Max. Machining Diameter
- Max. Headstock Stroke
- Tool
Star CNC SR-10J Type C Technical Details
Complete specifications, standard features, and optional upgrades.
- Max. Machining Diameter
- ø10mm (25/64 in)
- Max. Headstock Stroke
- 135 mm (5-5/16 in)
- Main Spindle Speed
- max. 15,000 min⁻¹
- Main Spindle Motor
- 2.2 kW (continuous) / 3.7 kW (15min./60%ED)
- Main Spindle Indexing
- C-axis control
- Rapid Feed Rate
- 35 m/min
- Standard Tools
- 6 tools (8 mm)
| Max. Machining Diameter | ø10mm (25/64 in) |
| Max. Headstock Stroke | 135 mm (5-5/16 in) |
| Main Spindle Speed | max. 15,000 min⁻¹ |
| Main Spindle Motor | 2.2 kW (continuous) / 3.7 kW (15min./60%ED) |
| Main Spindle Indexing | C-axis control |
| Rapid Feed Rate | 35 m/min |
| Standard Tools | 6 tools (8 mm) |
SR-10J Type C Questions
Answers to common questions about the SR-10J Type C.
The SR-10J Type C is ideal for industries that require high precision and small part production, such as medical devices, electronics, automotive, and aerospace.
The main spindle can reach a speed of up to 15,000 RPM, while the sub spindle has a maximum speed of 10,000 RPM, providing high precision and efficient machining.

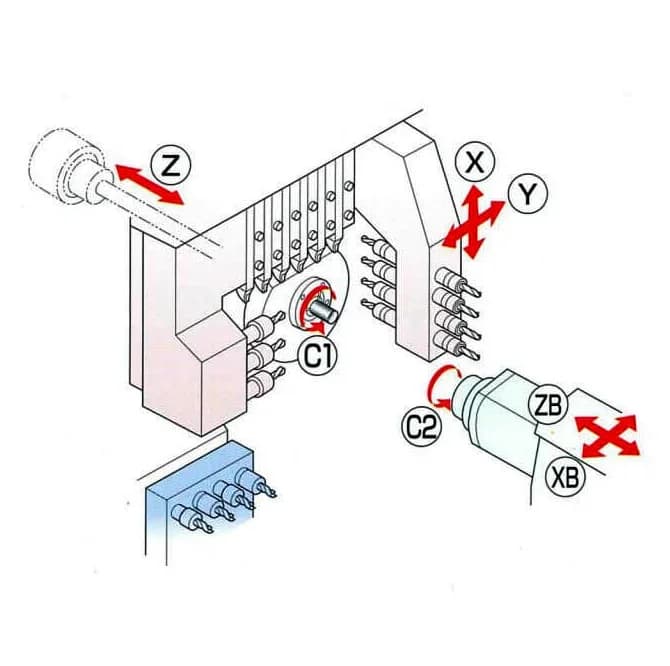

With C-axis control on both the main and sub spindles, along with a 3-spindle cross drilling unit and 4-spindle backworking unit, the SR-10J allows for complex machining in one setup, reducing cycle times and boosting efficiency. Contact our specialist for more technical details.
The SR-10J has a compact footprint of 1,865mm x 775mm x 1,695mm, saving floor space while still offering robust capabilities for small-diameter part production. Did you download CNC Swiss type automatic lathe brochure?
Yes, it supports various optional accessories such as high-pressure coolant units, chip conveyors, and bar feeders, making it easy to integrate and customize for specific machining needs.
