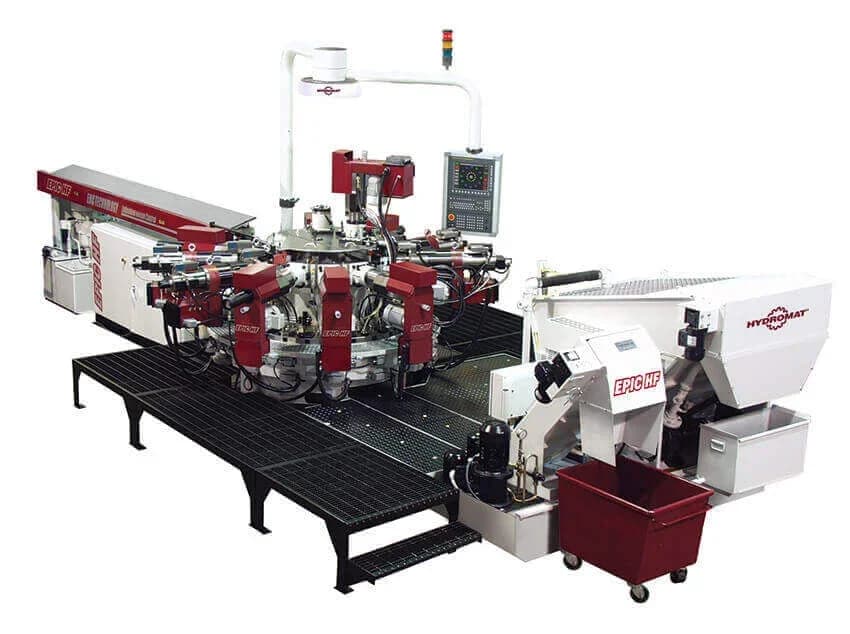

EPIC HF 25-12

The EPIC HF 25-12 is particularly well-suited for: Automotive: Producing components for ABS systems, brakes, fuel systems, electrical parts, engine components, and steering systems. Plumbing and HVAC: Manufacturing fittings, valve castings, faucet bodies, and connectors. Hardware and Tools: Creating power tool components and appliance housings. It excels at high-volume production of complex precision parts that require multiple operations.

The Hydromat EPIC HF 25-12 distinguishes itself among rotary transfer machines with its 12 independently operating stations, allowing for complex machining operations and higher productivity compared to typical 8-10 station models. It features a unique combination of up to 12 horizontal and 6 vertical toolspindles, enabling simultaneous cutting with up to 18 tools. The advanced FANUC 30i-B controller offers enhanced CNC capabilities and compatibility with common G-code programming, improving flexibility and ease of use. Its modular "plug and play" design facilitates quick changeovers, making it adaptable for various jobs. Overall, the EPIC HF 25-12 is built for high-volume production of complex parts, positioning it as a top choice for manufacturers seeking efficiency and precision in their operations. Contact our specialist for more technical details.

The Hydromat EPIC HF 25-12 rotary transfer machine is well-suited for several typical applications across different industries: Automotive components: It's ideal for producing parts like ABS and brake system components, fuel system parts, electrical components, engine parts, and steering system components. Plumbing and HVAC: The machine is effective for manufacturing fittings, valve castings, faucet bodies, and various connectors used in plumbing and HVAC systems. Hardware and tools: It can be used to create power tool components and appliance housings. Precision metal parts: The EPIC HF 25-12 is designed for precision metal cutting of stock sizes up to 1 inch round, 0.875 inch hex, and 0.75 inch square, with part lengths up to 4 inches. Complex parts requiring multiple operations: With its 12 horizontal and 6 vertical toolspindles, the machine is particularly suited for parts that need a combination of turning, milling, drilling, tapping, and other operations. High-volume production: The machine's design makes it ideal for mid to high-volume production runs of complex precision parts. Parts requiring tight tolerances: The precision ground Hirth ring ensures table accuracy and reliability from station-to-station within .0002", making it suitable for parts with tight tolerance requirements. The EPIC HF 25-12's versatility and ability to perform multiple operations in a single setup make it particularly valuable for manufacturers looking to eliminate secondary operations and produce complete parts efficiently from bar stock, castings, forgings, or cold formed blanks.

Yes, the Hydromat EPIC HF 25-12 is well-equipped to handle complex parts with multiple features. Here's why: Multiple machining stations: The EPIC HF 25-12 has 12 independently operating stations, allowing for a variety of operations to be performed on a single part in one setup. Horizontal and vertical tooling: It utilizes up to 12 horizontal toolspindles and has the capacity for 6 vertical toolspindles, enabling up to 18 tools to cut simultaneously. This combination allows for machining complex geometries from multiple angles. Versatile machining capabilities: The machine can perform various operations including turning, milling, drilling, and tapping, making it suitable for parts requiring multiple different machining processes. Precision and flexibility: The modular design provides tremendous versatility and flexibility in a turnkey machining system. It has the rigidity to handle all components and material types within its work envelope. CNC control: The FANUC 30i-B controller allows for advanced programming capabilities, enabling the execution of complex machining sequences. Wide range of part sizes: It can handle stock sizes up to 1 inch round, 0.875 inch hex, and 0.75 inch square, with part lengths up to 4 inches, accommodating a variety of complex part geometries. High accuracy: The precision ground Hirth ring ensures table accuracy and reliability from station-to-station within .0002", allowing for tight tolerances on complex features. These capabilities make the EPIC HF 25-12 particularly well-suited for producing complex parts with multiple features, especially in industries like automotive, plumbing, and aerospace where intricate components are common. Did you download Hydromat EPIC HF 25-12 brochure ?

The Hydromat EPIC HF 25-12 reduces cycle time and improves productivity in several key ways: Simultaneous machining: It utilizes up to 12 horizontal toolspindles and 6 vertical toolspindles, allowing up to 18 tools to cut simultaneously. This parallel processing dramatically reduces overall cycle time compared to sequential machining operations. Multi-station design: With 12 independently operating stations, the machine can perform multiple operations on a part in a single setup, eliminating the need for part transfers between machines. High-speed indexing: The machine features a fast 0.500 second index time between stations, minimizing non-cutting time. Complete part processing: The EPIC HF 25-12 can perform various operations including turning, milling, drilling, and tapping, enabling the production of complete parts in one setup and eliminating secondary operations. Quick changeovers: The modular toolspindle system with quick-change presettable tool heads allows for easy and rapid changeovers between different jobs. CNC control: The advanced FANUC 30i-B controller enables efficient programming and execution of complex machining sequences, optimizing tool paths and cutting parameters. Reduced work-in-progress: By producing complete parts in one setup, the machine minimizes work-in-progress inventory and associated handling time. Material savings: The machine's design allows for extremely short remnants, translating to significant material savings and reduced waste. These features combine to significantly reduce overall cycle time per part and increase the number of parts that can be produced in a given time period, thereby improving overall productivity for manufacturers.
