Hydromat Rotary Transfer Machines
EPIC HF 32/45-16
by Hydromat

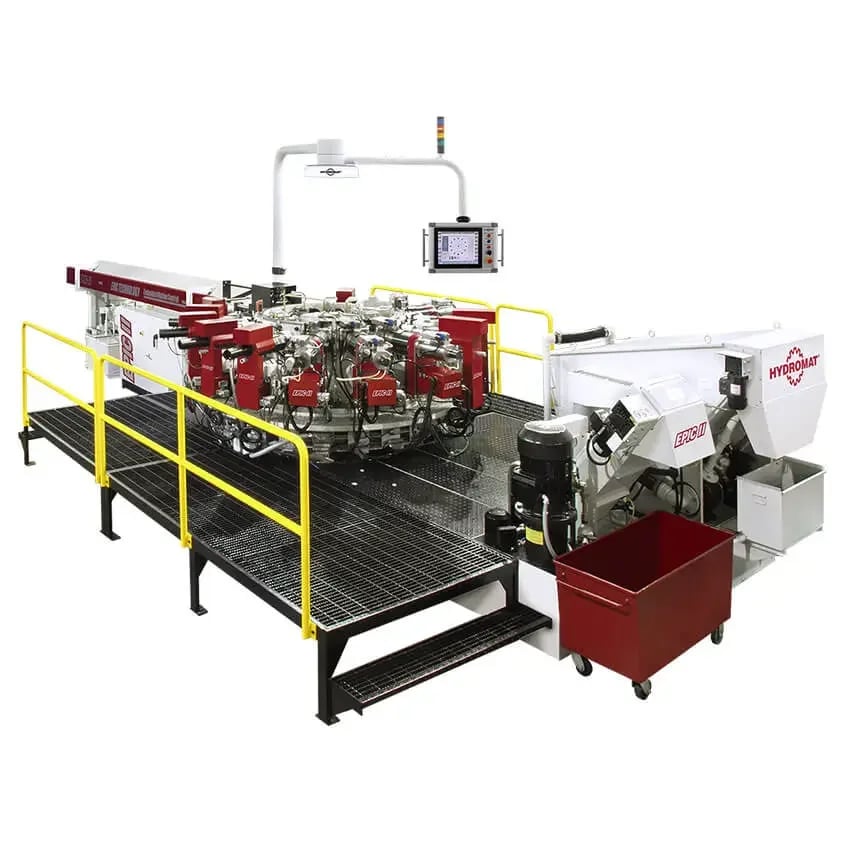

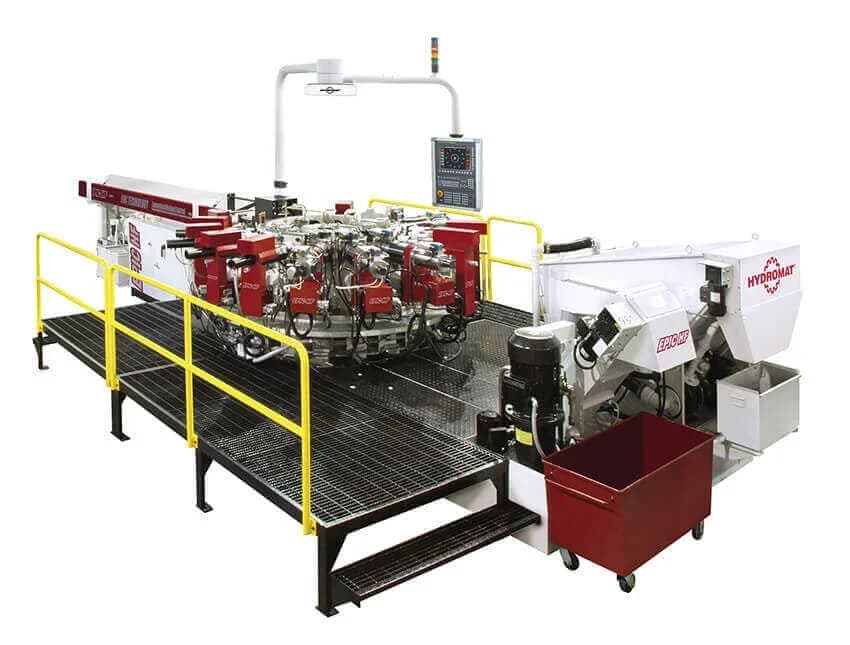

The Hydromat EPIC HF 32/45-16 is a high-performance rotary transfer machine engineered for precision, flexibility, and efficiency in complex part production.
1 3/4"
Max Stock Size (Round)
1 1/2"
Max Stock Size (Hex)
1 1/4"
Max Stock Size (Square)
EPIC HF 32/45-16 Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Spindle speeds up to 12,000 RPM
- Affordable induction motors: Equipped with reliable and cost-effective motors for common operations, ensuring efficient performance.
- Vector spindle drives: Housed in an air-conditioned electrical cabinet for optimal performance and durability.
- Clean spindle design: No junction boxes attached to the spindle, promoting better accessibility and reduced maintenance needs.
Ease of Operation
- FANUC G-code programming: Utilizes the world’s most widely used and trusted control language for seamless, industry-standard operation.
- Hydromat HMI software: Designed for maximum ease of use and reliability, simplifying machine operation and control.
- Simplified control: No valve programming required, reducing complexity and streamlining the operation process.
- CNC upgrade flexibility: Easily adopt CNC enhancements over time, either through hands-on use or FANUC's NCGuide CNC simulator for efficient learning.
- Custom Macro programming: Expands standard G-code with powerful, easy-to-use programming features, offering advanced customization options.
- User-friendly interface: The familiar folder tree-view, similar to a PC structure, allows for easy navigation and visualization of programs.
Built-In Extras
- Supports up to 24 tools in the cut at once for versatile machining
- Designed for fast, precise production with high output capacity
- Convenient pendant keyboard: The keyboard is directly attached to the pendant and requires no charging, providing continuous, hassle-free operation.
- Mil-Spec connectors: No plugs on command or feedback cables, ensuring robust, military-grade connections for superior reliability.
- Enhanced functionality and performance: Future-proof machine capabilities with cutting-edge technology that evolves with your needs.
Hydromat EPIC HF 32/45-16 Technical Details
Complete specifications, standard features, and optional upgrades.
- Max Stock Size (Round)
- 1 3/4"
- Max Stock Size (Hex)
- 1 1/2"
- Max Stock Size (Square)
- 1 1/4"
- Max Part Length
- 6"
- Horizontal Stations
- 16
- Vertical Stations
- 8
- Total Tool Capacity
- 24 tools
- Index Time
- 0.900 seconds
- Spindle Speed
- 12,000 RPM
- Machine Power
- 60 HP (Average)
- Total Weight
- 16,500 lbs
- Control System
- FANUC 30i-B
| Max Stock Size (Round) | 1 3/4" |
| Max Stock Size (Hex) | 1 1/2" |
| Max Stock Size (Square) | 1 1/4" |
| Max Part Length | 6" |
| Horizontal Stations | 16 |
| Vertical Stations | 8 |
| Total Tool Capacity | 24 tools |
| Index Time | 0.900 seconds |
| Spindle Speed | 12,000 RPM |
| Machine Power | 60 HP (Average) |
| Total Weight | 16,500 lbs |
| Control System | FANUC 30i-B |
EPIC HF 32/45-16 Questions
Answers to common questions about the EPIC HF 32/45-16.
The Hydromat EPIC HF 32/45-16 is primarily used for precision metal cutting in various industries, including automotive, aerospace, and medical manufacturing. Its modular design allows for the efficient production of complex components, making it suitable for high-volume production runs where accuracy and speed are essential.
The Hydromat EPIC HF 32/45-16 and the EPIC II 32/45-16 are both advanced rotary transfer machines designed for high-precision metal cutting, but they have some key differences. The EPIC HF 32/45-16 uses a FANUC 30i-B control system, while the EPIC II 32/45-16 employs a Bosch CNC/PLC common control system. The EPIC HF 32/45-16 features FANUC's advanced CNC capabilities, including nanometer resolution control and high-speed machining, while the EPIC II 32/45-16 offers enhanced operations, production reporting, and more advanced features like integrated tool monitoring (in development). The EPIC II 32/45-16 also features an improved architecture with reduced failure points and a more efficient design, as well as expanded canned cycle selections for faster and easier program generation. Both machines offer similar capabilities in terms of stock capacity (up to 1.75" round, 1.5" hex, 1.25" square) and part length (up to 6 inches), and they share the same basic configuration of up to 16 horizontal and 8 vertical toolspindles. The choice between these two models would likely depend on the specific needs of the manufacturer, such as familiarity with FANUC or Bosch controls, the importance of the newer features in the EPIC II, and the specific machining requirements of the parts being produced. Contact our specialist for more technical details.
The Hydromat EPIC HF 32/45-16 is capable of processing a wide range of materials, including various metals such as aluminum, steel, and brass. Its robust design and versatility make it suitable for machining different material types within its operational envelope.
While specific production rates can vary based on the complexity of the parts being machined and the materials used, the Hydromat EPIC HF 32/45-16 is designed to achieve high throughput due to its ability to utilize multiple tool spindles simultaneously. This capability allows for efficient machining and reduced cycle times, making it ideal for high-volume production environments. Did you download Hydromat EPIC HF 32/45-16 brochure ?
