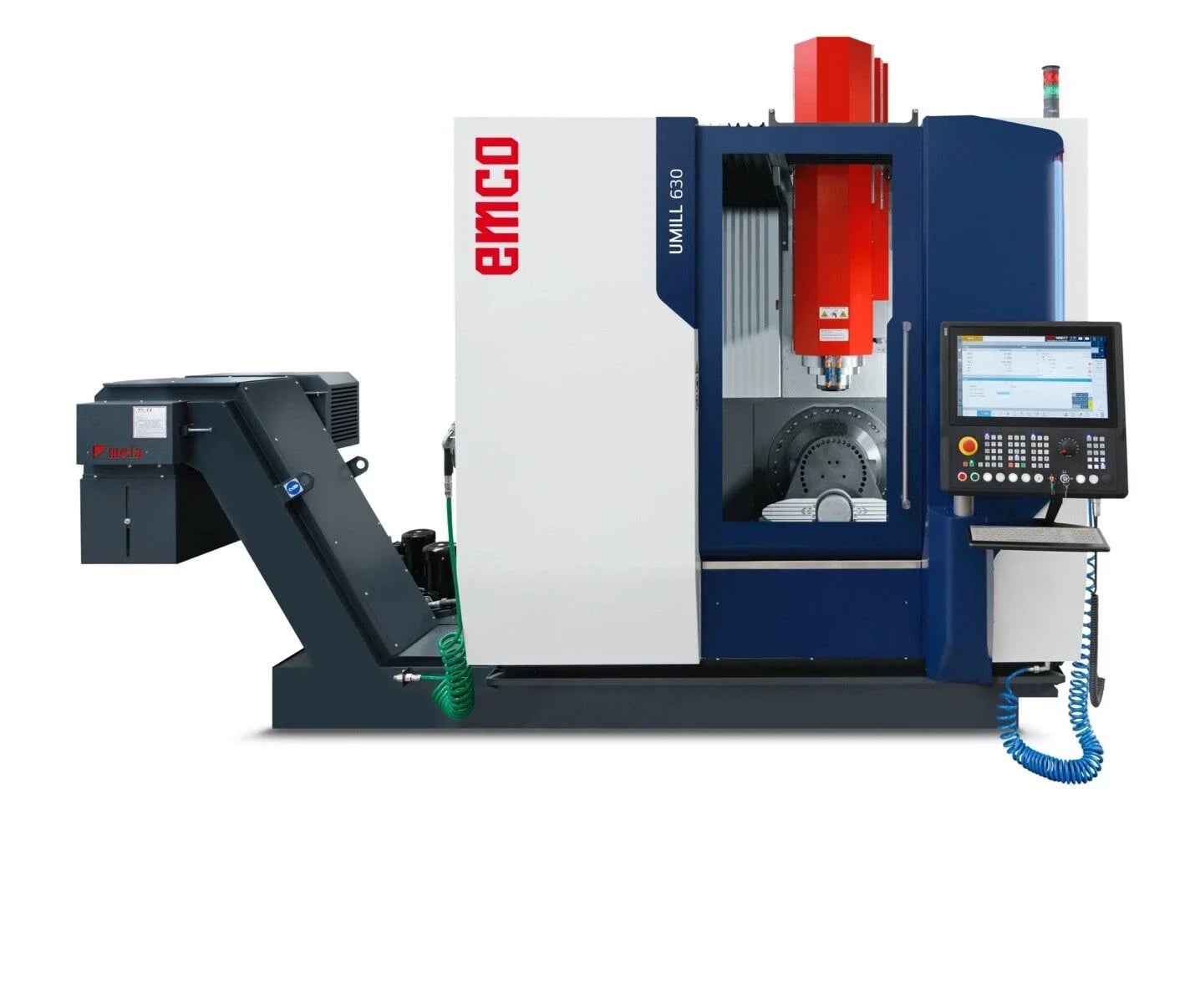

Umill 630

Name: Emco Umill 630
Brand: Emco
Availability: InStock

by Emco

The UMILL 630 is a high-precision 5-axis universal machining center designed for simultaneous milling of complex parts.

500/460/450 mm

Travel in X/Y/Z

150/600 mm

Distance spindle nose

50/50/50 m/min

Rapid motion speeds in X/Y/Z

CNC Mill

The Emco UMILL 630 is a 5-axis universal machining centre engineered for precision and versatility in demanding manufacturing applications. This compact, rigidly-constructed machine features direct drives in the X-Y-Z axes, powerful spindle options (15,000 or 24,000 RPM), and a large swivel-rotary table capable of handling workpieces up to 200 kg. The machine delivers simultaneous 5-axis machining with exceptional accuracy, supported by linear scales that ensure positioning precision within ±10 micrometres. The UMILL 630 serves diverse industrial sectors including automotive composite mould making, aerospace titanium component manufacturing, and wind turbine production. Its FEM-optimised cast iron and welded steel construction provides maximum rigidity and thermal stability, while advanced features like automatic tool changers (30, 60, or 90 tool stations), high-speed coolant systems, and probing capabilities enhance both efficiency and surface quality. The machine integrates EMCONNECT digital services, enabling remote monitoring and predictive maintenance for optimised production planning.

Key Features

Umill 630 Features

Standard features that set this machine apart in demanding manufacturing environments.

Precision & Performance

5-Axis Simultaneous Machining – Enables high-precision milling with simultaneous multi-axis movement.
Rigid Machine Base – Welded steel construction with FEM optimization ensures stability, precision, and durability.
Direct Drives in X-Y-Z – Provides high dynamic performance and positioning accuracy.

Ease of Operation

Swivel-Rotary Table – Large table (630x500 mm) with up to 200 kg load capacity for complex workpieces.
EMCONNECT Digital Services – Remote monitoring and predictive maintenance for optimised production planning.

Full Specifications

Emco Umill 630 Technical Details

Complete specifications, standard features, and optional upgrades.

Travel in X/Y/Z: 500/460/450 mm
Distance spindle nose: 150/600 mm
Rapid motion speeds in X/Y/Z: 50/50/50 m/min
Feed force in X/Y/Z: 5000/5000/5000 N
Table: 630x500 mm
Max. table load: 300 kg
Max. speed: 50-15000 / 24000 rpm
Drive power: 26 / 46,5 kW
Max. Torque: 110 Nm
Number of tools: 30 (60/90)
Dimensions (LxWxH): 2570x3680x2900 mm
Machine weight: 6800 kg

Travel in X/Y/Z	500/460/450 mm
Distance spindle nose	150/600 mm
Rapid motion speeds in X/Y/Z	50/50/50 m/min
Feed force in X/Y/Z	5000/5000/5000 N
Table	630x500 mm
Max. table load	300 kg
Max. speed	50-15000 / 24000 rpm
Drive power	26 / 46,5 kW
Max. Torque	110 Nm
Number of tools	30 (60/90)
Dimensions (LxWxH)	2570x3680x2900 mm
Machine weight	6800 kg
