Hyperturn 50 with BMT

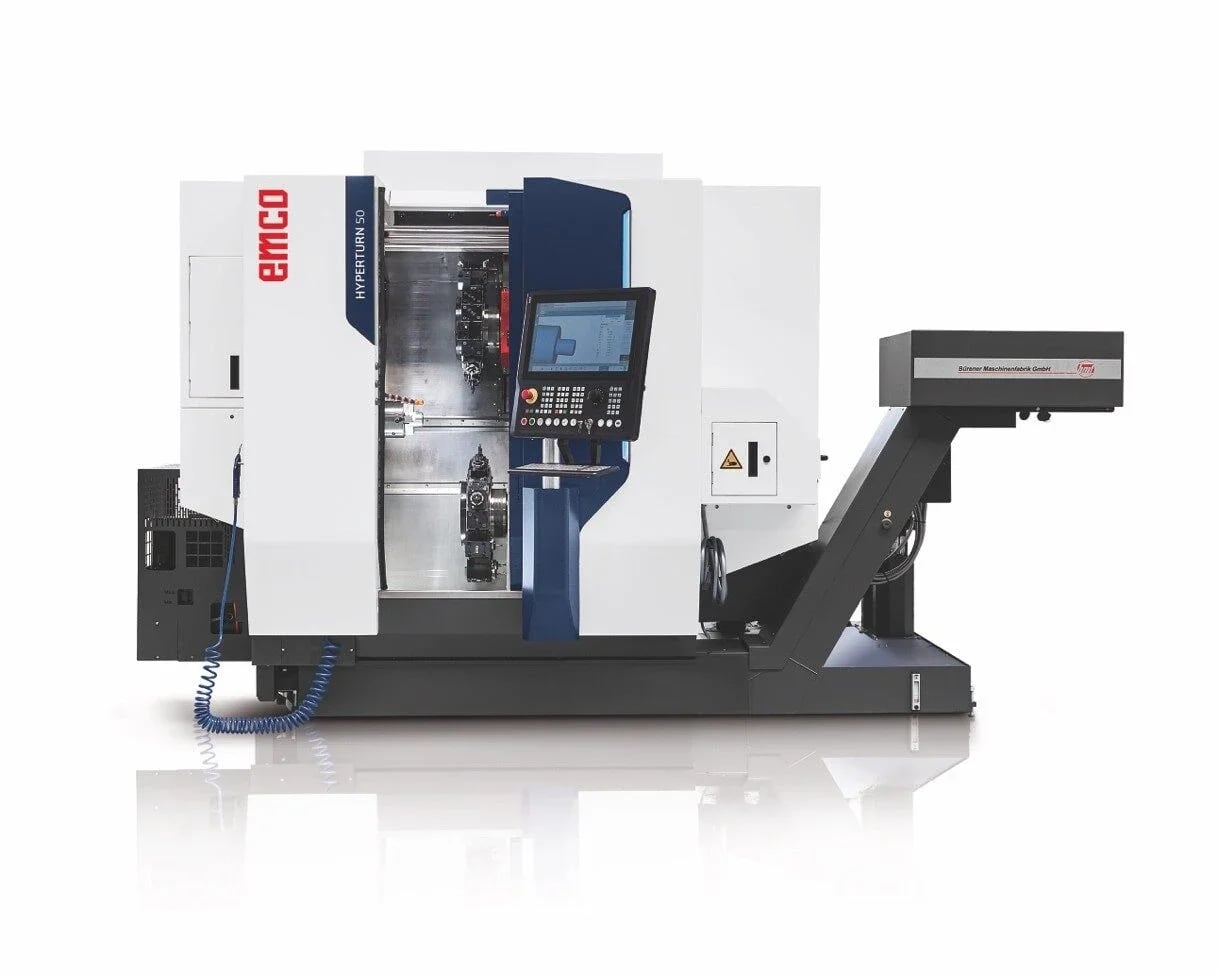

Name: Emco Hyperturn 50 with BMT
Brand: Emco
Availability: InStock

by Emco

Now in its third generation, the new HYPERTURN 50 stands out by merging a significantly larger work area with compact design.

175 /+40/-40 /510 mm

Travel in X/Y/Z

51 (65) mm

Bar diameter

300 mm

Max. turning diameter

CNC Mill

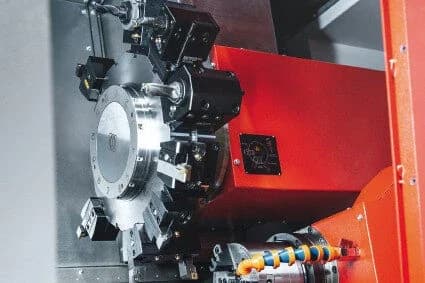

The Emco Hyperturn 50 with BMT is a universal CNC turn-mill machine designed for economical production of intricate turned and milled components. It features two high-performance spindles capable of 0–7,000 RPM, dual 12-station tool turrets (expandable to 16 with the optional BMT turret), and a Y-axis with 80 mm travel for simultaneous multi-axis machining. The machine accommodates bar stock up to 51 mm diameter and can achieve a maximum turning diameter of 300 mm, making it suitable for diverse manufacturing applications. This machine excels in precision industries including medical technology, aerospace, automotive, and jewellery manufacturing. The BMT turret option provides enhanced milling capabilities with direct-drive technology reaching 12,000 RPM and delivering 21 Nm torque, ideal for complex parts with substantial milling requirements. Its compact design combines a significantly larger work area with space efficiency, while the two-piece base structure ensures high precision and thermal stability. The Hyperturn 50 integrates advanced CNC controls — either Siemens Sinumerik ONE or Fanuc 31i-B Plus — with the EMCONNECT digital process assistant for streamlined production management. Optional automation systems including swing loaders and pneumatic parts catchers maximise efficiency for small to medium-sized batch production.

Key Features

Hyperturn 50 with BMT Features

Standard features that set this machine apart in demanding manufacturing environments.

Precision & Performance

Two spindles12-station
Driven tools on both turrets Y axis with 80 mm travel
Two high-performance work spindles
Stable Y axis with 80 mm travel
Hyperturn SMY-plus with additional Y axis in the upper slide system

Ease of Operation

or swing loader Sinumerik ONE or Fanuc 31i-B
Plus control EMCONNECT – Digital Process Assistant
Sinumerik ONE and Fanuc 31i-B Plus with 22'' Multi-Touch panel
User-friendly dialog control with 3D graphics

Machining Capability

16-station tool turret
Highly dynamic drives in all axes
Two highly flexible, 12-station tool turrets

Built-In Extras

Automation with EMCO bar
Compact dimensions
Made in the Heart of Europe

Full Specifications

Emco Hyperturn 50 with BMT Technical Details

Complete specifications, standard features, and optional upgrades.

Travel in X/Y/Z: 175 /+40/-40 /510 mm
Bar diameter: 51 (65) mm
Max. turning diameter: 300 mm
Swing over bed: 430 mm
Rapid motion speeds in X/Y/Z: 30 / 15 / 45 m/min
Max. speed: 0-7000 (5000) rpm
Max. drive power: 15 (18) kW
Max. torque: 100 (150) Nm
Max. speed: 0-7000 rpm
Max. drive power: 15 kW
Max. torque: 100 Nm
VDI size: VDI25 / BMT45P
Number of tools: 12 / 12 (16)
Driven tools: 12 / 12 (16)
Max. speed: 8000 / 12000 rpm
Max. drive power: 4 / 8,8
Max. torque: 16 / 21 Nm
VDI size: VDI25 / BMT45P
Number of tools: 12 / 12 (16)
Driven tools: 12 / 12 (16)
Max. speed: 8000 / 12000 rpm
Max. drive power: 4 / 8,8 kW
Max. torque: 16 / 21 Nm
Dimensions (LxWxH): 2930 x 2330 x 2340 mm
Machine weight: 5900 kg

Travel in X/Y/Z	175 /+40/-40 /510 mm
Bar diameter	51 (65) mm
Max. turning diameter	300 mm
Swing over bed	430 mm
Rapid motion speeds in X/Y/Z	30 / 15 / 45 m/min
Max. speed	0-7000 (5000) rpm
Max. drive power	15 (18) kW
Max. torque	100 (150) Nm
Max. speed	0-7000 rpm
Max. drive power	15 kW
Max. torque	100 Nm
VDI size	VDI25 / BMT45P
Number of tools	12 / 12 (16)
Driven tools	12 / 12 (16)
Max. speed	8000 / 12000 rpm
Max. drive power	4 / 8,8
Max. torque	16 / 21 Nm
VDI size	VDI25 / BMT45P
Number of tools	12 / 12 (16)
Driven tools	12 / 12 (16)
Max. speed	8000 / 12000 rpm
Max. drive power	4 / 8,8 kW
Max. torque	16 / 21 Nm
Dimensions (LxWxH)	2930 x 2330 x 2340 mm
Machine weight	5900 kg
