Eclipse 12-100

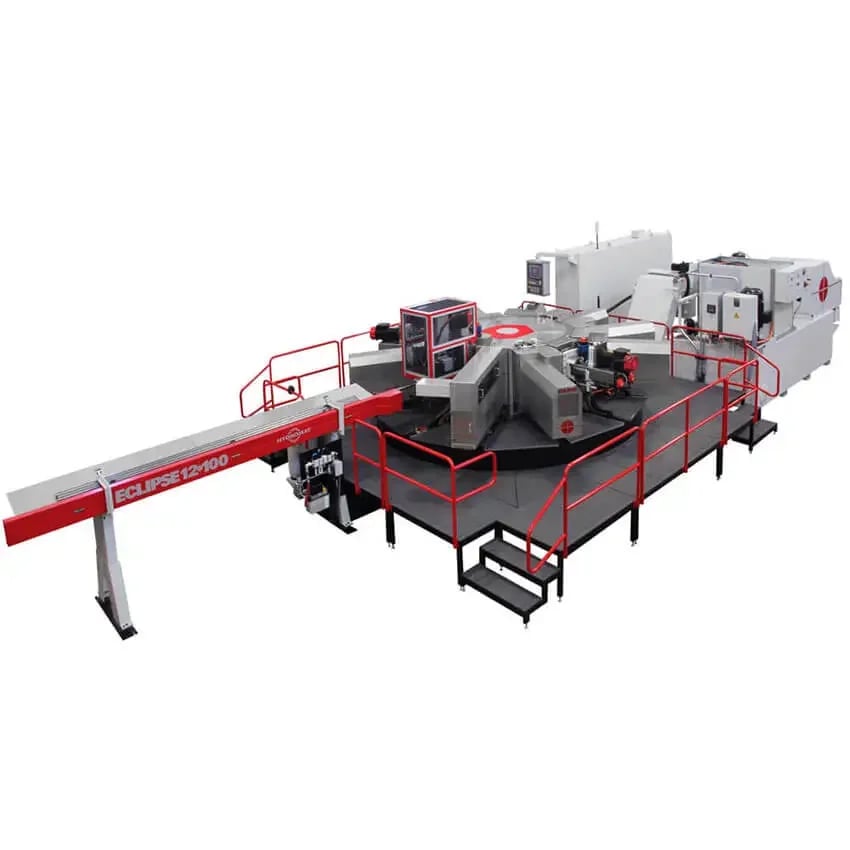

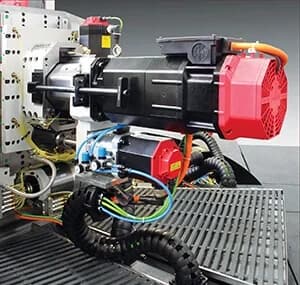

The Hydromat Eclipse 12-100 surpasses traditional Hydromat machines with its larger 2-meter diameter cast iron frame for enhanced stability and precision, advanced all-electric servo spindles for improved flexibility, and a FANUC 30iB CNC control system that ensures exceptional accuracy. Its capability to handle both bar-fed and blank-loaded applications with robot load/unload options increases productivity and versatility. Additionally, designed with Industry 4.0 principles, the Eclipse 12-100 offers a significant leap in precision, productivity, and flexibility for medium to high production of complex workpieces.

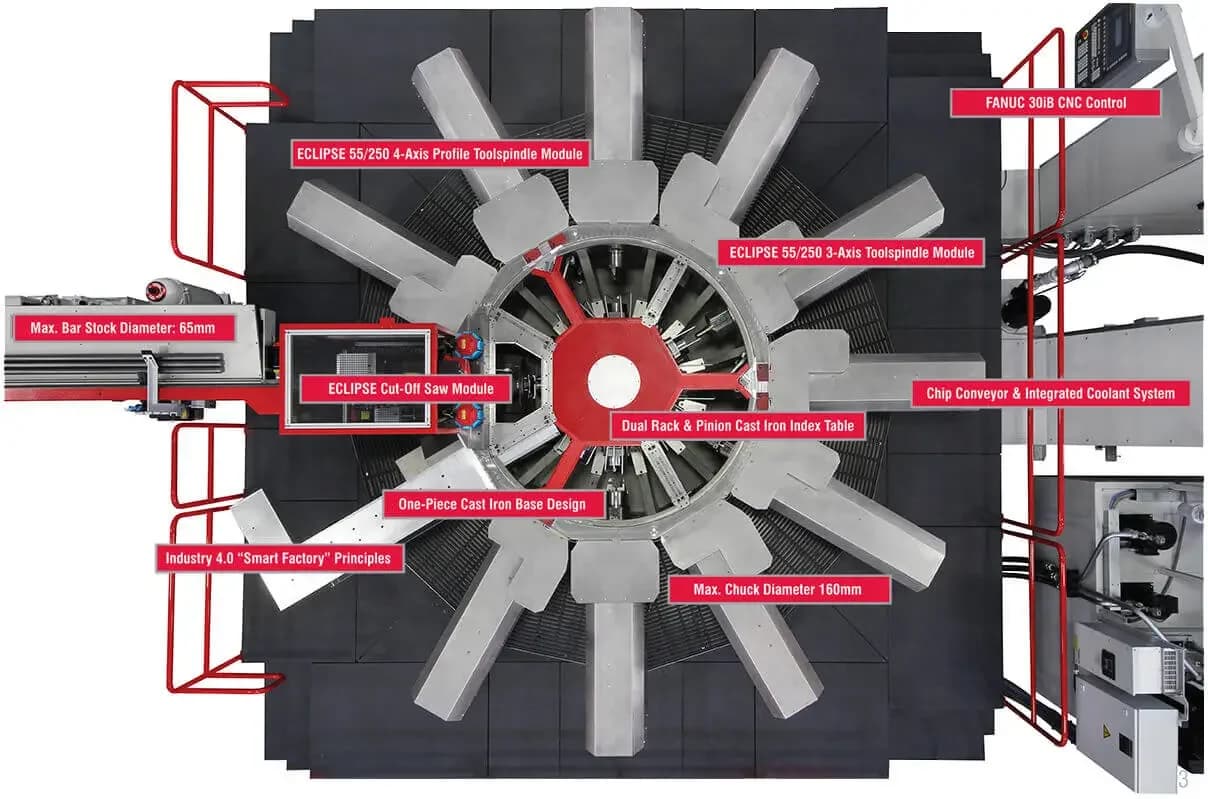

The Hydromat Eclipse 12-100 is indeed well-equipped to handle complex parts with tight tolerances. Its 12 tool spindle modules, each with 3-axis or 4-axis capability, allow for intricate machining operations. The machine's robust cast iron frame, heavy-duty linear guideways, and large bearing diameters provide the stability and precision needed for tight tolerances. Additionally, the advanced CNC control system with fixture mapping ensures exceptional accuracy from station to station. The ability to perform simultaneous machining on 11 stations, coupled with options for both bar-fed and blank-loaded applications, makes the Eclipse 12-100 highly versatile for producing complex, high-precision parts efficiently. Contact our specialist for more technical details.

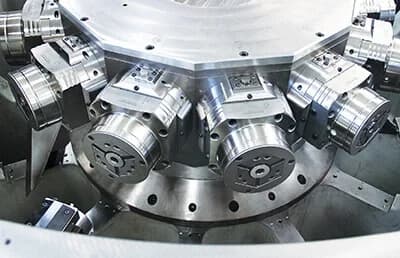

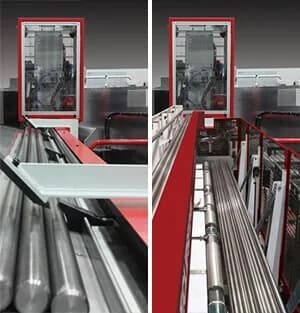

The Eclipse 12-100's bar stock loading system is designed for flexibility and efficiency. It can be equipped with either a standard or bundle bar feeder, accommodating bar stock up to 65mm in diameter and allowing for workpiece lengths up to 180mm. The system integrates seamlessly with the machine's 12-station rotary transfer design, enabling loading and unloading on station one while machining occurs on the other 11 stations. This setup is complemented by hydraulically actuated Hainbuch clamping devices and a newly designed cut-off saw, enhancing accuracy and efficiency. The system's design allows for continuous production of complex parts directly from bar stock, reducing work in progress and eliminating secondary operations.

The Hydromat Eclipse 12-100 rotary transfer machine is a versatile and advanced manufacturing solution suitable for a wide range of industries requiring high-precision, complex parts in medium to high production volumes. The machine is designed for "medium to high production of complex workpieces requiring multiple operations, complex cuts and where tight tolerances are critical". It can produce parts complete from bar stock, castings, forgings or cold formed blanks. This versatility makes it suitable for industries like: Automotive Aerospace Medical devices General manufacturing The Eclipse 12-100 supports lean manufacturing principles and competitive manufacturing at small, medium and large production quantities. This makes it applicable to a wide range of manufacturing industries. Its ability to handle both bar-fed and blank-loaded applications, along with robot load/unload capabilities for six-sided machining, further expands its industrial applications. The machine's high precision and ability to handle complex parts with tight tolerances make it suitable for industries that require high-accuracy components. Its Industry 4.0 readiness suggests it can be integrated into modern smart manufacturing environments across various sectors.
