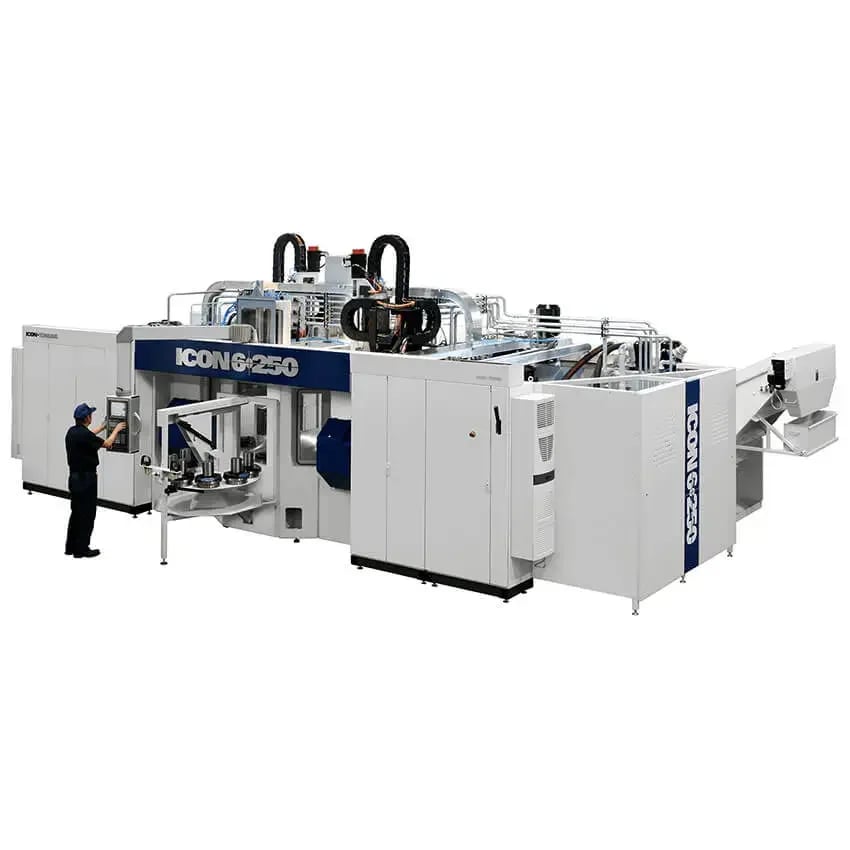

ICON 6-250

The Hydromat ICON 6-250 is designed for a variety of precision machining applications, particularly in medium to high production environments. It is ideally suited for the automotive, aerospace, hydraulics, and HVAC (Heating, Ventilation, and Air Conditioning) industries. This machine excels in producing complex workpieces that require multiple operations, featuring tight tolerances and intricate cuts. It is capable of handling a wide range of part sizes, from a minimum of 2 inches to a maximum of 8-10 inches in cube dimensions. The ICON 6-250 is particularly effective for medium to high production runs, offering the ability to perform 5-sided machining with 4-axis interpolation and even 6-sided machining when utilizing its idle station for workpiece inversion. While specific applications may vary, it is likely used for manufacturing precision engine components, aerospace structural parts, hydraulic valve bodies and manifolds, HVAC system components, and medical device parts. Its flexibility, speed, and accuracy make the ICON 6-250 a versatile solution for manufacturers seeking to produce complex parts efficiently within a compact footprint, potentially replacing up to six standard machining centers on a shop floor.

The ICON 6-250 contributes to cost savings through increased productivity by performing simultaneous machining on multiple stations, significantly reducing cycle times. Its compact footprint allows it to replace up to six standard machining centers, optimizing space and reducing facility costs. The machine's versatility in handling various part sizes and operations minimizes the need for multiple specialized machines. Rapid tool changes and an efficient pallet system further reduce downtime, while high-performance spindles ensure fast material removal rates. Additionally, a robust coolant system extends tool life and improves part quality, ultimately leading to lower tooling costs and reduced scrap rates. Together, these features enhance efficiency and productivity, translating into substantial cost savings for manufacturers. Contact our specialist for more technical details.

The ICON 6-250 is indeed capable of handling large and complex parts. It can accommodate workpieces ranging from 2" to 8-10" cubes, with a pallet load capacity of up to 200 pounds. The machine's 4 machining stations, equipped with up to 8 machining units and 12-tool changers, enable 5-sided machining with 4-axis interpolation. This configuration allows for the production of complex geometries and features on multiple sides of a part. The ICON 6-250's ability to perform simultaneous operations, combined with its versatile tooling and robust design, makes it well-suited for manufacturing complex components with tight tolerances, particularly in industries like automotive, aerospace, hydraulics, and HVAC.

The ICON 6-250 stands out in the precision machining industry due to several key features: Unique design combining flexible machining center principles with rotary transfer production philosophy, resulting in a compact and robust machine with exceptional productivity Simultaneous machining on all four stations, enabling efficient production of complex workpieces requiring multiple operations Six-position pallet changing table that rapidly transfers work holding pallets between stations in just 4 seconds, maximizing output Ability to handle part sizes ranging from 2" cube to 8-10" cube, with up to eight tools cutting simultaneously Five-sided machining capability with 4-axis interpolation (six-sided if using the idle station for workpiece inversion) Equipped with up to 8 machining units (4 horizontal and 4 vertical), each featuring a 12-tool HSK 63 size changer for maximum flexibility Powerful water-cooled CNC spindle motors that accelerate to 12,000 RPM in less than one second, handling heavy machining cuts with ease Small footprint that can replace up to six standard machining centers on a shop floor, increasing productivity per square foot Ideally suited for industries requiring complex cuts and tight tolerances, such as automotive, aerospace, hydraulic, and HVAC parts production These features combine to create a highly innovative solution that produces parts complete with fast cycle times and superior surface finishes, making the ICON 6-250 a unique and efficient productivity center in the precision machining industry.

Operating the ICON 6-250 requires specialized training due to its advanced features and capabilities. While the search results don't provide specific details about training requirements, we can infer the following based on the machine's complexity: CNC programming skills: The ICON 6-250 uses a Fanuc 30i CNC controller, so operators would need training in Fanuc CNC programming and operation. Multi-axis machining knowledge: With its 5-sided machining capability and 4-axis interpolation, operators would need training in multi-axis machining techniques. Pallet system operation: Familiarity with the 6-position pallet changing system would be necessary. Tool management: Training on managing the multiple tool changers and understanding the "Direct Connection" tool changing system would be required. Safety procedures: Given the machine's complexity and power, thorough safety training would be essential. Maintenance and troubleshooting: Basic maintenance procedures and troubleshooting skills would likely be part of the required training. Specific application training: Since the ICON 6-250 is often customized for specific applications, operators might need additional training tailored to their particular manufacturing processes. Typically, machine tool manufacturers like Hydromat provide comprehensive training programs for their equipment, which would cover these aspects and more. Operators would likely need to complete this manufacturer-provided training before operating the ICON 6-250 in a production environment.
